Medium architectural floodlight for outdoor installation on a façade or wall, with 355° horizontal rotation base and allowing vertical adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Remote 24V DC power supply needed, DMX driver integrated, with 3 x CREE “XML” RGBW LED. IP66 rating.
Ring Medium DMX RGBW
Features
Basics
- Surface mounted spotlight

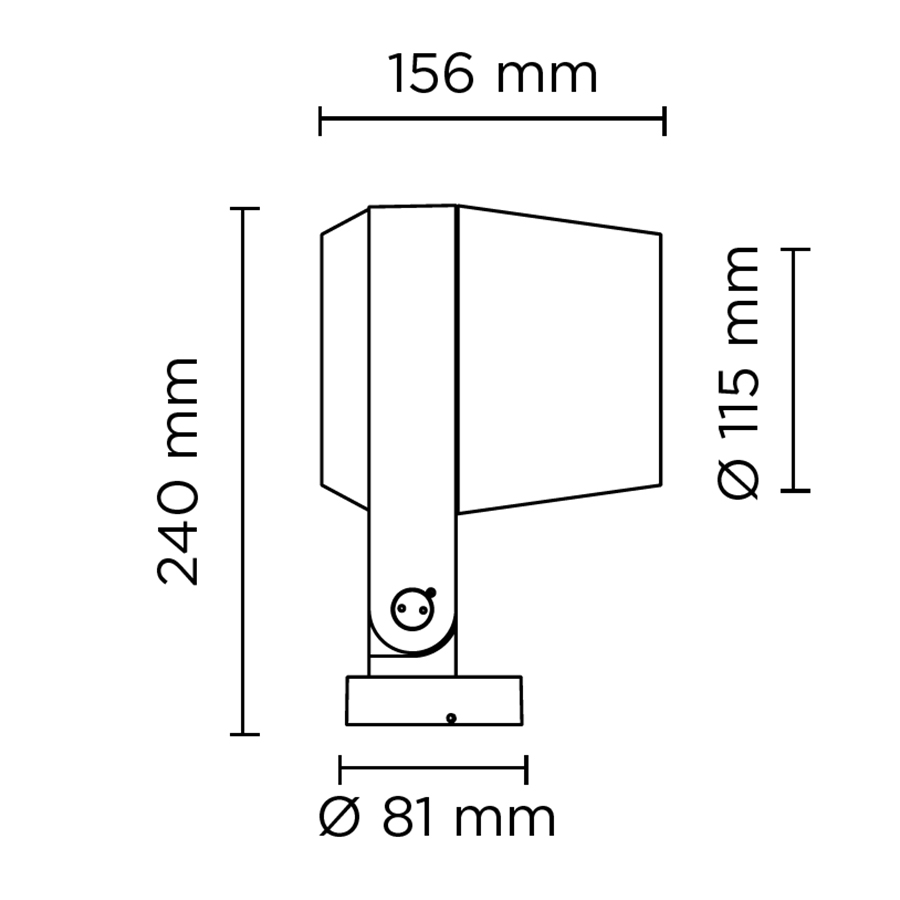

- 115mm Ø x 156mm long body
- Textured Grey (RAL 9006) / Anthracite Grey (RAL 7016) / Matt black (on request) finish
- 1m tail for 24V
- 1m tail for DMX in
- 1m tail for DMX out
Power
- 14W
- 24V
- Integrated DMX controller
- Class III
Lighting Control
- DMX
Lighting Characteristics
- 3 x CREE “XML” RGBW LED
- RGBW (3000K)
- 12° / 25° / 35° optics
Lifetime and Environment
- 50,000 hours
Aiming and Flexibility
- 355° horizontal rotation
- +90° / -40° vertical tilt
Protection
- IP66
- IK10
Materials
- High corrosion resistance extruded copper-free aluminum body
- Polyester powder coating with phosphocromating pre-finish
- Silicon rubber gasket
- Tempered glass
- Stainless steel fixings and components
- M16 rubber grommet
- 1m tail for 24V
- 1m tail for DMX in
- 1m tail for DMX out
Accessories
- Ground spike
- Honeycomb louvre
- Tree strap
- Anti-glare visor
- Pole mounting bracket
Mass
- 2.5kg
Warranty
- 5-year warranty
